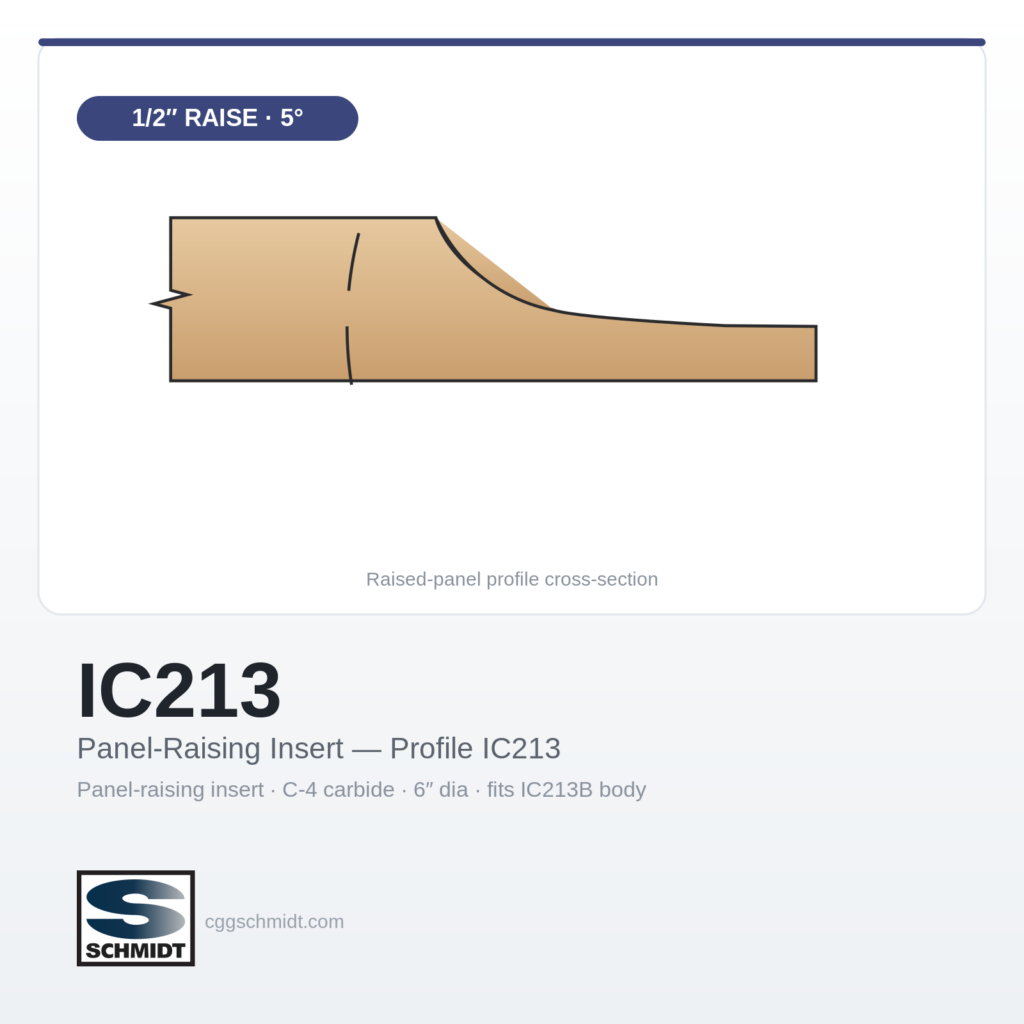

Panel-Raising Insert — 1/2″ Raise, 5° Bevel, Profile IC213 (IC213B Body)

Description

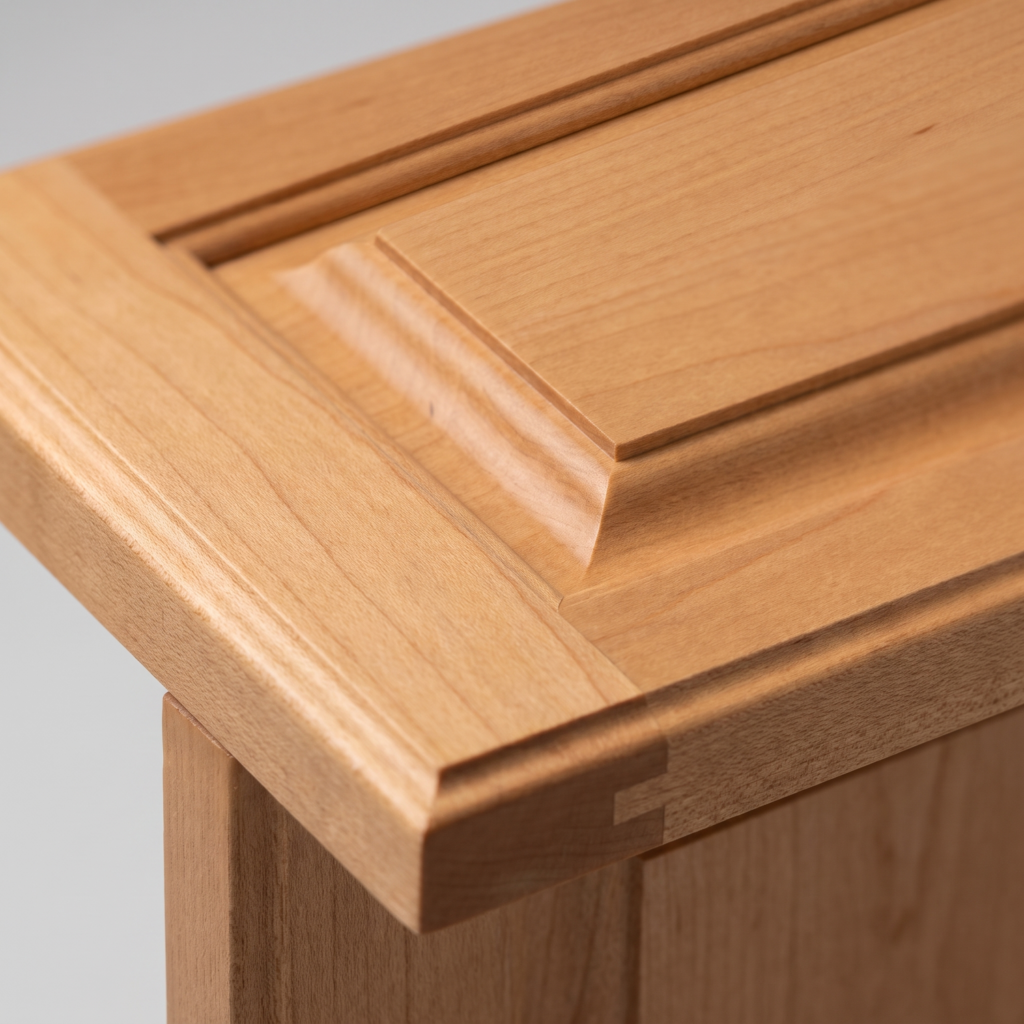

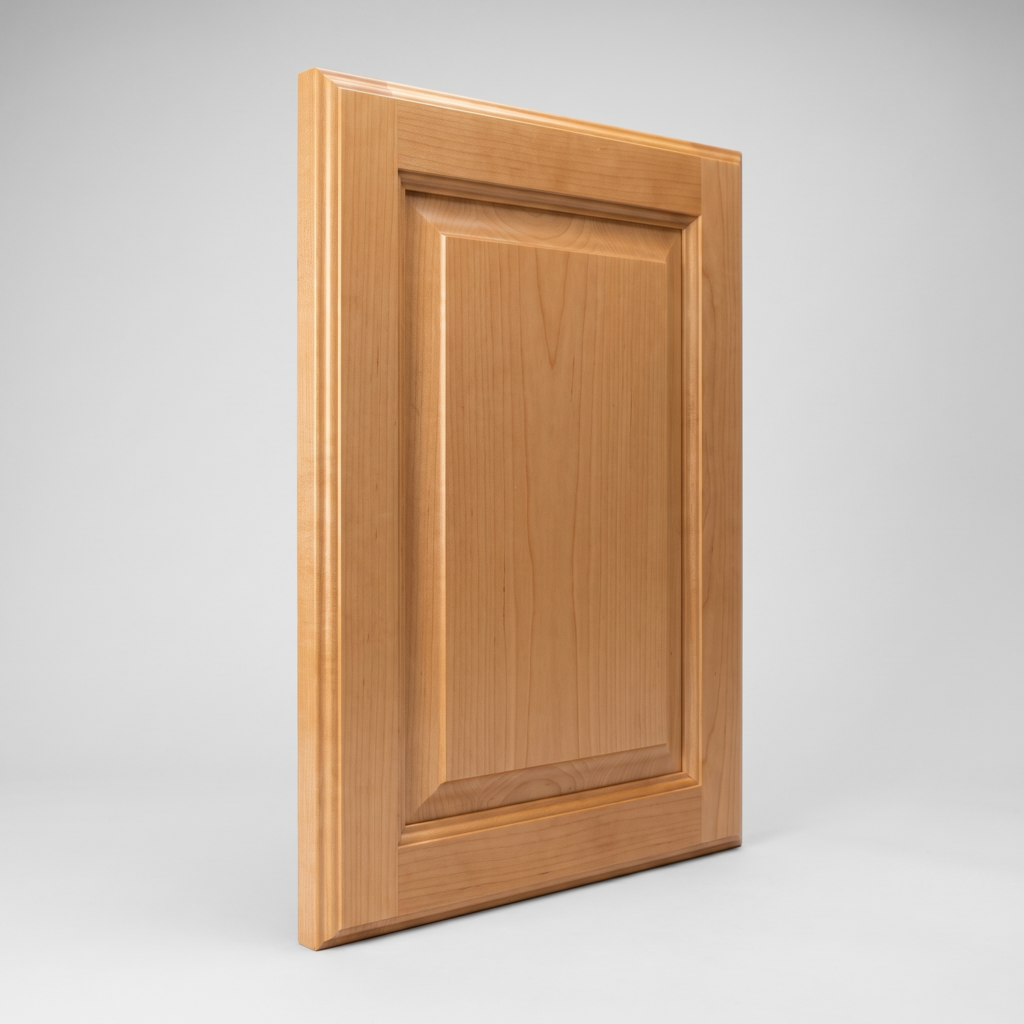

Raises a cabinet door panel with a 1/2″ raise above the tongue and a 5° beveled field with a 3/4″ radius detail — one of two profiles carried in Schmidt’s IC213B dual-profile body. This single-sided solid C-4 carbide insert pairs with the IC21338 insert, so one body cuts two panel profiles. Running at 6″ cutting diameter in counter-clockwise rotation, wood face up, it shears the raised field on standard door-panel stock; a 2-1/2″ bearing (AC111) guides the pattern. Inserts swap out when worn rather than being reground, and a matching back cut can be added with the IC209 back cutter. Insert only — the IC213B body and IC210SR screws are ordered separately.
