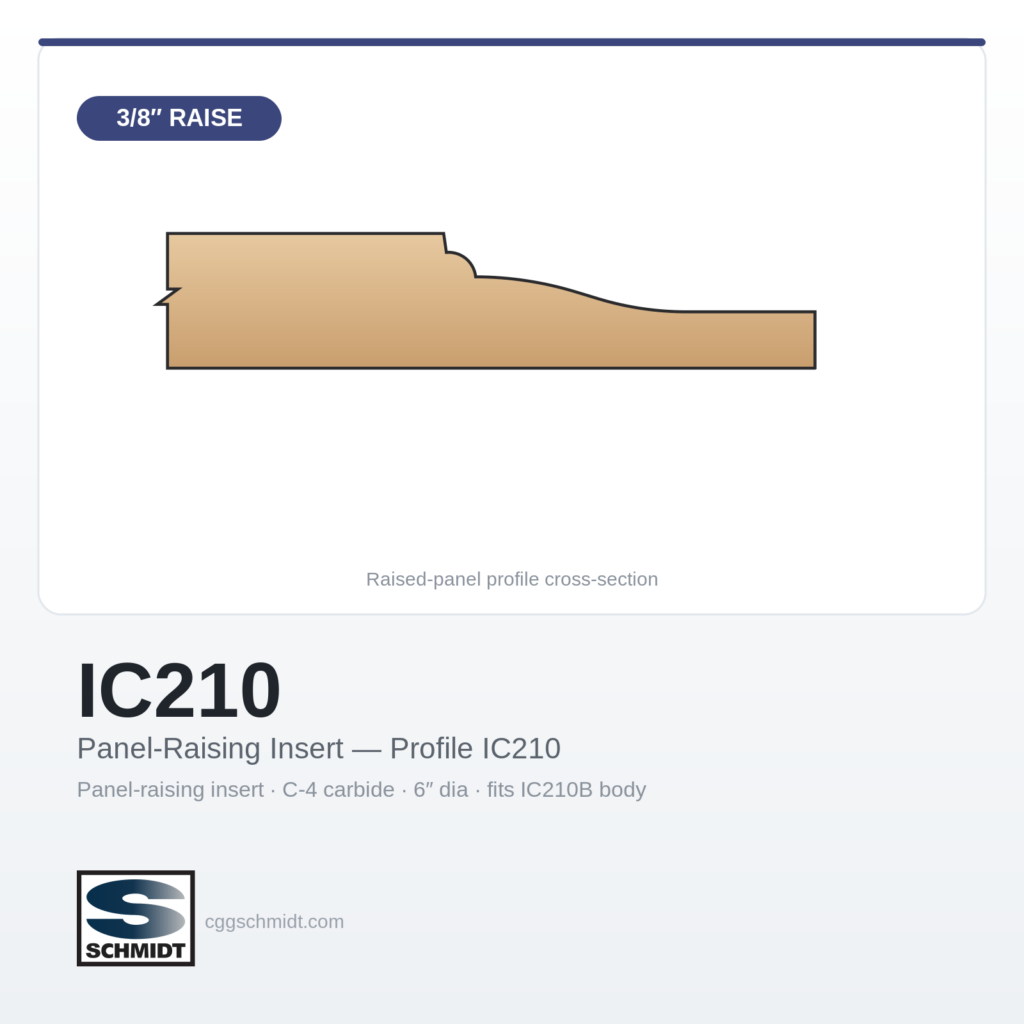

Panel-Raising Insert — 3/8″ Raise, Profile IC210 (IC210B Body)

Description

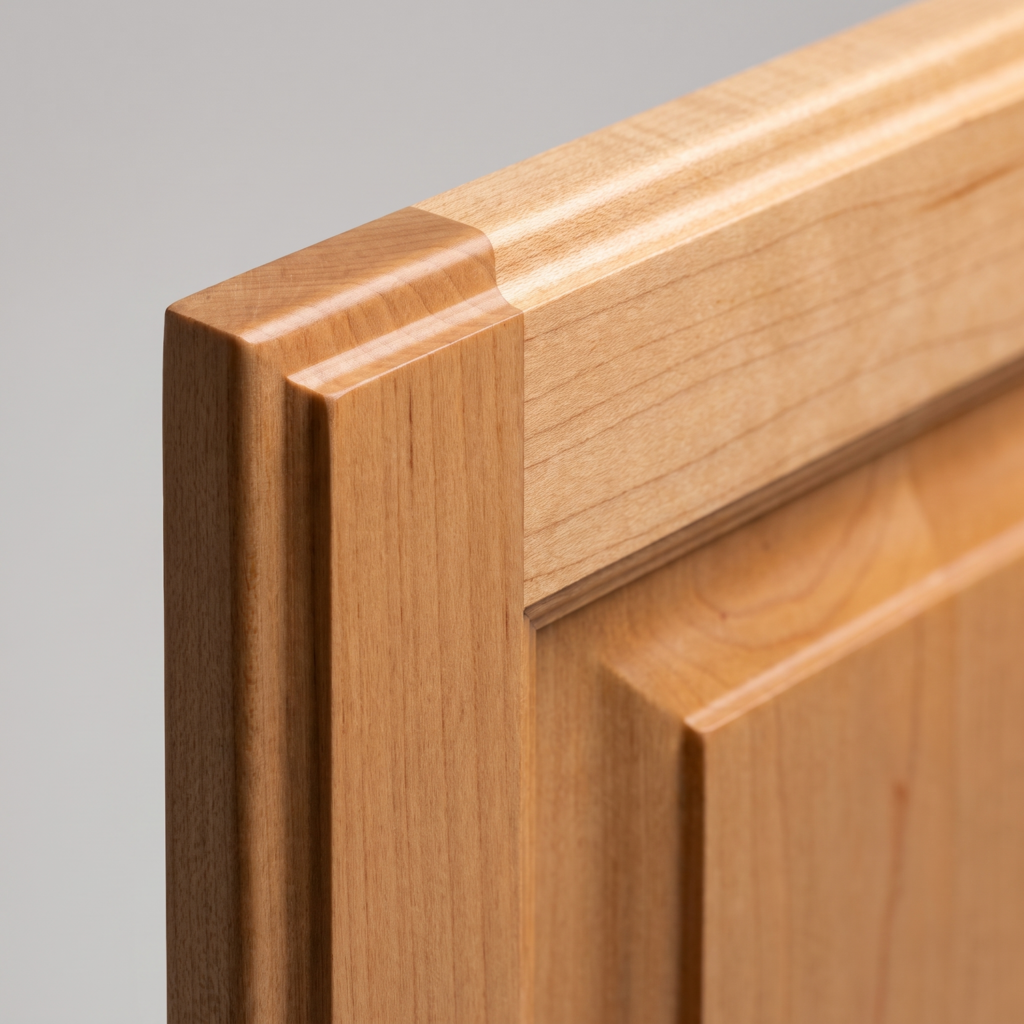

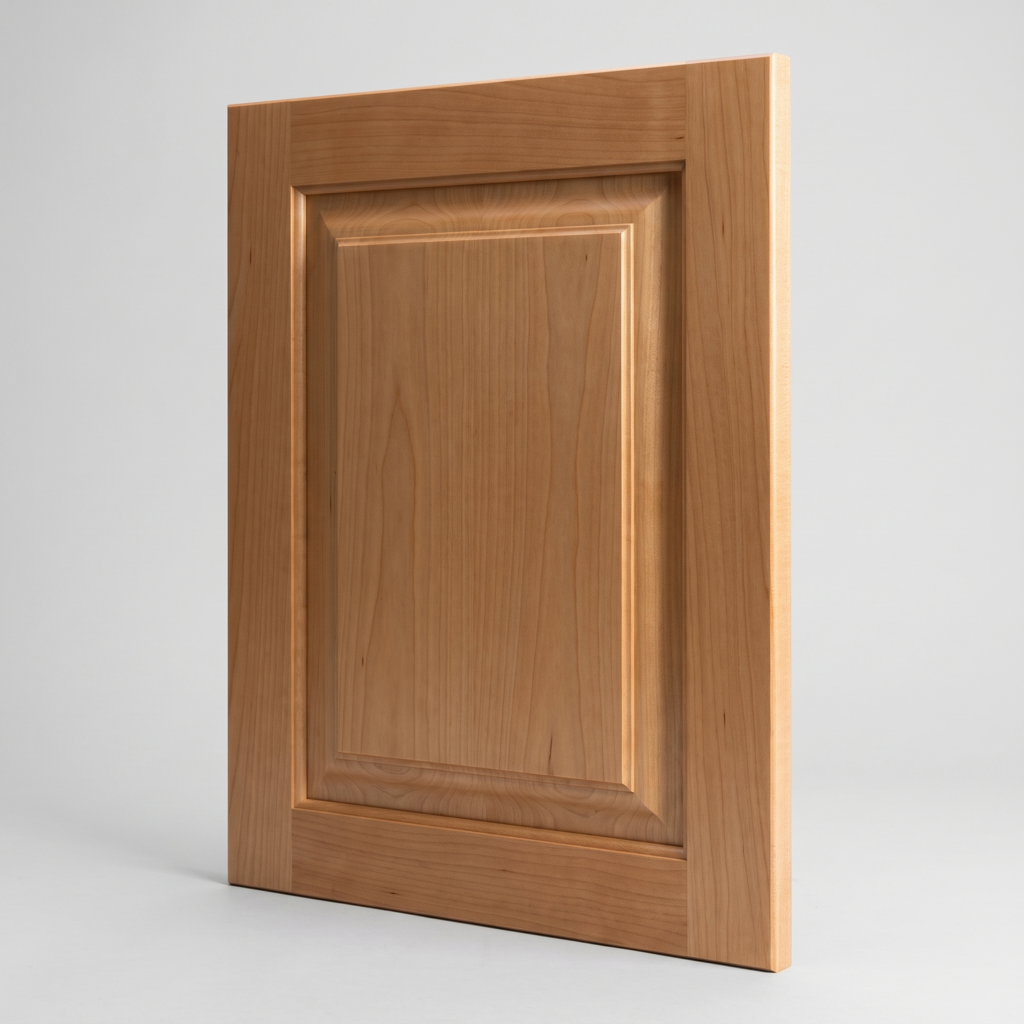

Raises a cabinet door panel with a 3/8″ raise above the tongue — the deeper, more detailed of the two profiles carried in Schmidt’s IC210B dual-profile body. This single-sided solid C-4 carbide insert pairs with the IC21114 insert so one body cuts two panel profiles. Running at 6″ cutting diameter in counter-clockwise rotation, wood face up, it shears the raised field on standard door-panel stock; a 2-1/2″ bearing (AC111) guides the pattern. Inserts swap out when worn rather than being reground, and a matching back cut can be added with the IC209 back cutter. Insert only — the IC210B body and IC210SR screws are ordered separately.
