160mm Adjustable Groover, 8mm-15mm Range, 1-1/4 in. Bore

Description

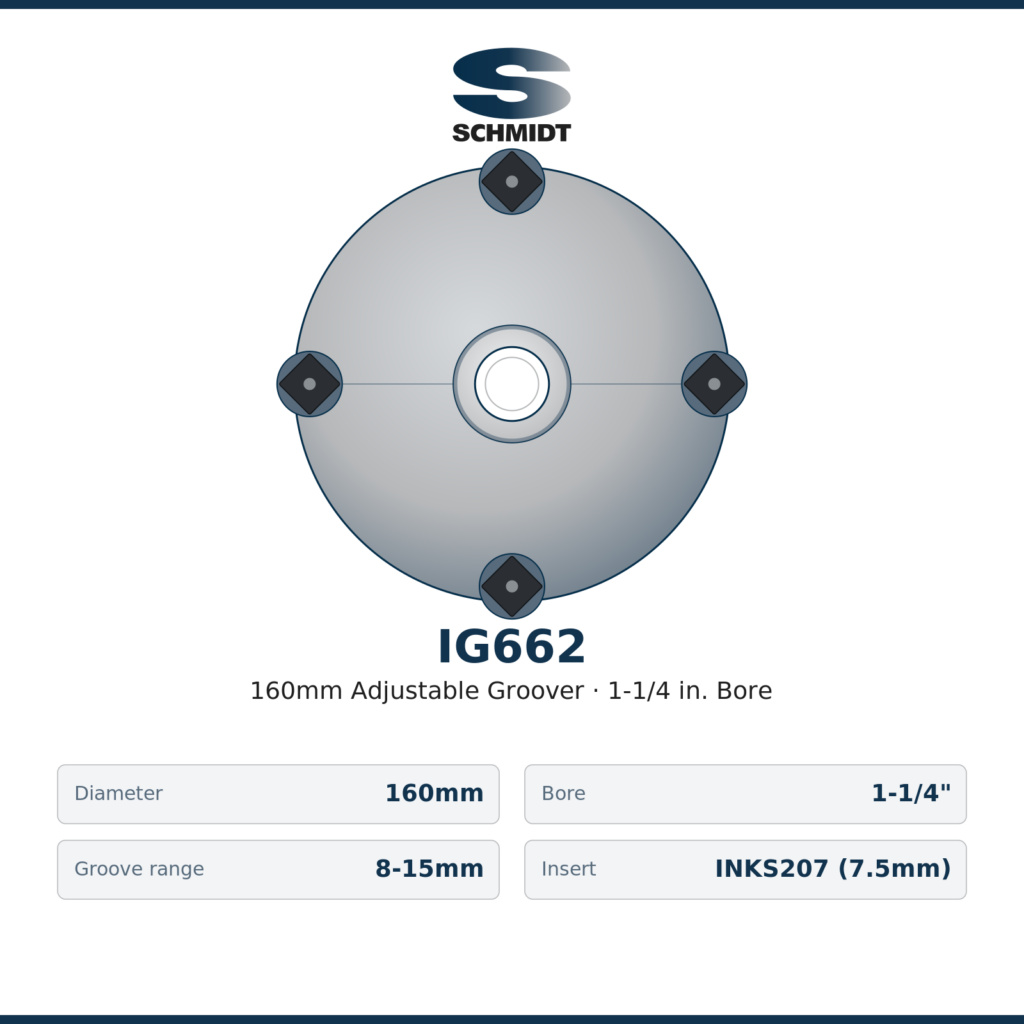

The IG662 is a 160mm diameter adjustable groover with 1-1/4 in. bore that cuts variable-width grooves from 8mm to 15mm without a tool change. The 8mm-15mm range covers mid-range groove work — door panel grooves for standard 3/8 in. to 1/2 in. panel stock, drawer bottom grooves, spline slots for flat-panel glue-ups, and track grooves for hardware in cabinet and furniture production. Variable groove width in a single adjustable head eliminates the need to stock multiple fixed-width groove cutters across this width range, reducing tool inventory and changeover time in shops with variable product specifications. At 160mm diameter and 1-1/4 in. bore, the IG662 fits standard production shaper spindles. The adjustment mechanism positions the cutter elements to the target width and locks for the production run. Confirm the groove width setting is secure before cutting production parts.
