Solid Carbide Compression Spiral Bit, 2-Flute — CD 3/4″ · CL 2″ · SH 3/4″ · OAL 4″

Description

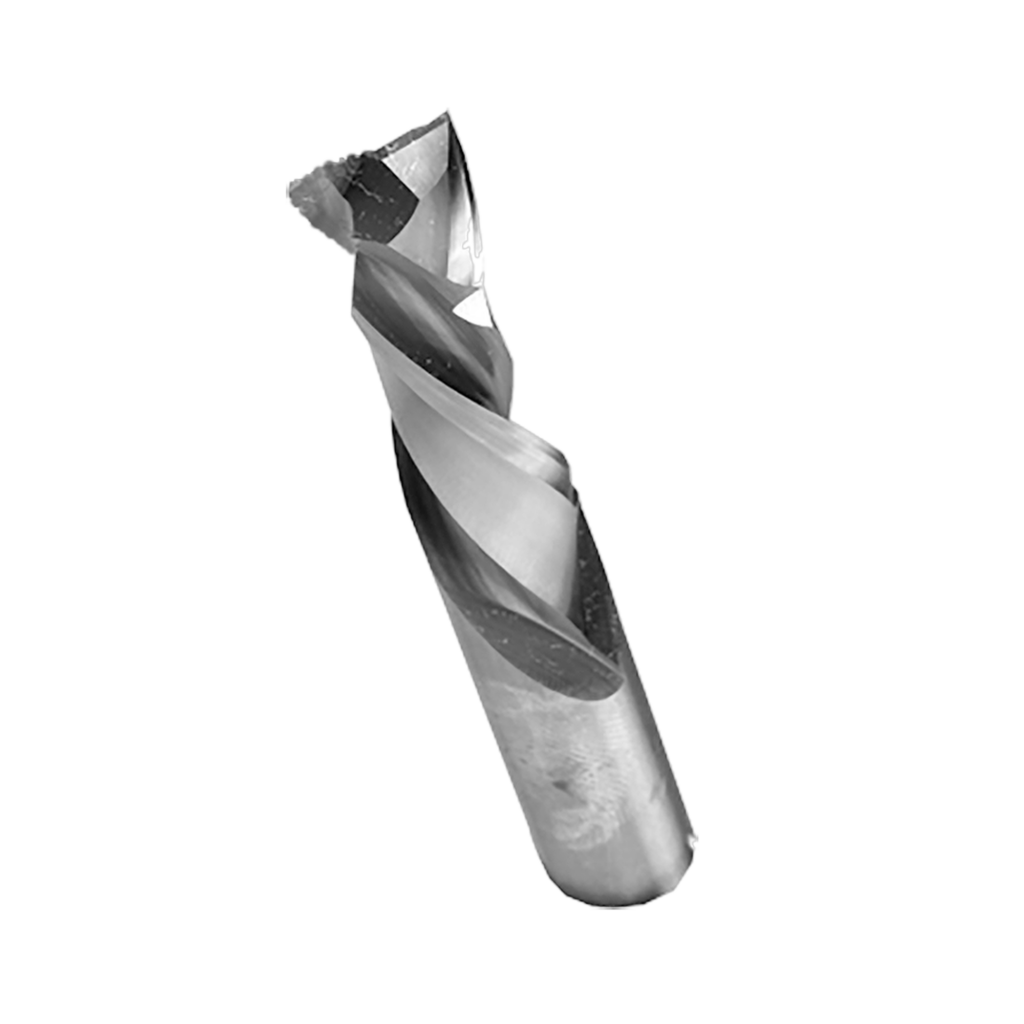

The Schmidt RCC2454 is a 2-flute solid-carbide compression spiral router bit at 3/4″” dia × 3/4″” shank × 2″” cut, 4″” OAL. Compression spiral geometry combines an upcut section at the tip — for clean bottom-face finish and chip evacuation — with a downcut section toward the shank, which drives chips downward to produce a clean, tear-out-free top face simultaneously. The result is clean, chip-free edges on both faces in a single through-cut pass, making compression spirals the primary choice for laminated panels, veneered plywood, melamine-faced board, and HPL sheet goods on CNC router tables. Use for through-cuts only — the compression geometry requires both cutting sections to be engaged to produce clean results on both faces. For blind pockets, use a dedicated upcut or downcut spiral instead. Solid carbide construction delivers the wear resistance and geometric stability needed for production CNC routing in abrasive laminate and composite substrates.
