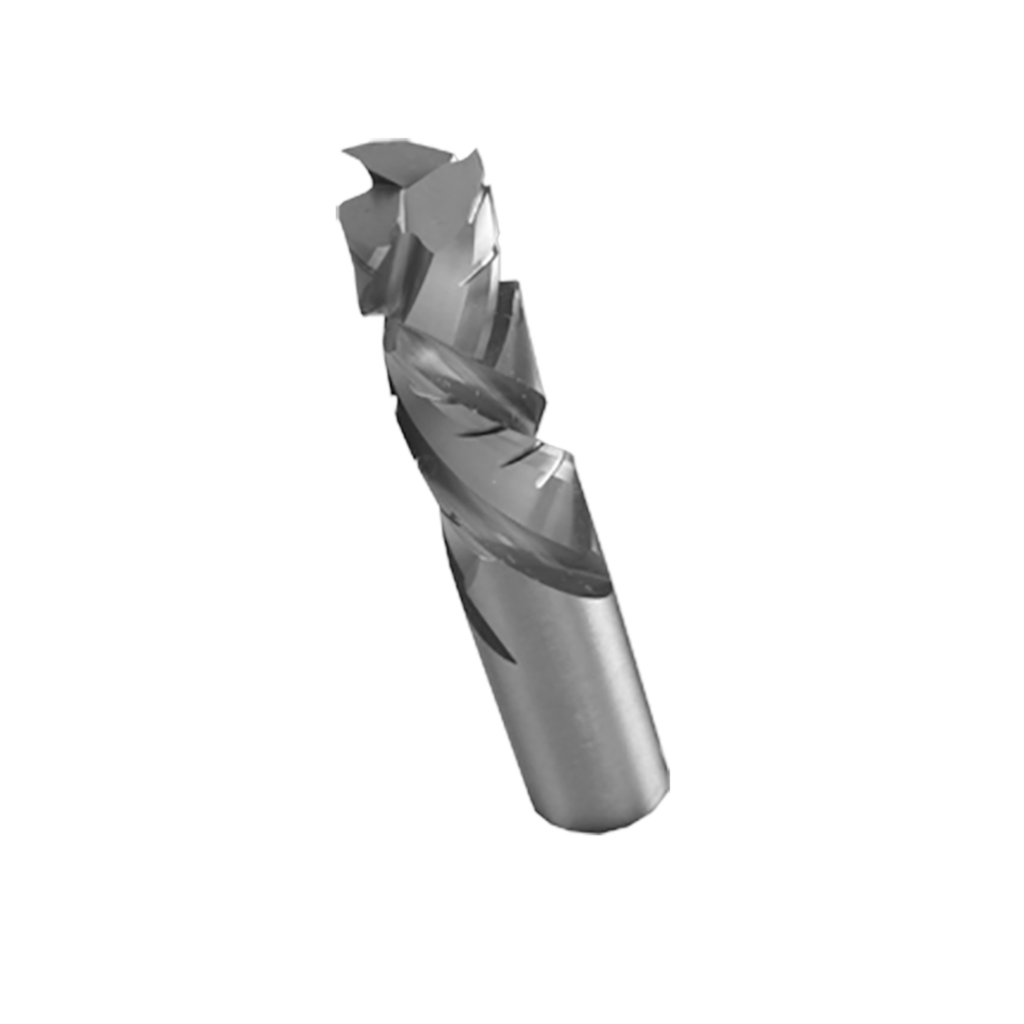

Solid Carbide Compression Chipbreaker Spiral Bit, 2-Flute — CD 1/2″ · CL 1-7/8″ · SH 1/2″ · OAL 4″

Description

The Schmidt RCCP2368 is a 2-flute compression chipbreaker solid-carbide spiral bit at 1/2″” dia × 1/2″” shank × 1-7/8″” cut, 4″” OAL. Chipbreaker geometry adds serrations along the flute cutting edge that mechanically break chips into shorter segments during the cut — preventing the long, stringy chips that pack the flutes and cause clogging, burning, and bit breakage in deep pocket routing and through-cuts in thick material. Compression geometry cleans both top and bottom faces simultaneously for through-cuts in laminated panels. The combination of chipbreaking and compression spiral geometry makes these bits particularly effective in deep pockets, stacked materials, and multi-pass cuts where chip clearance is the limiting factor rather than surface finish. Use for through-cuts in laminated and veneered sheet goods where both face surfaces must be chip-free. Solid carbide construction for wear resistance and rigidity in production CNC routing. Run at appropriate chip load for the substrate and flute count; chipbreaker geometry allows higher feed rates than standard spirals in deep-cut applications.
