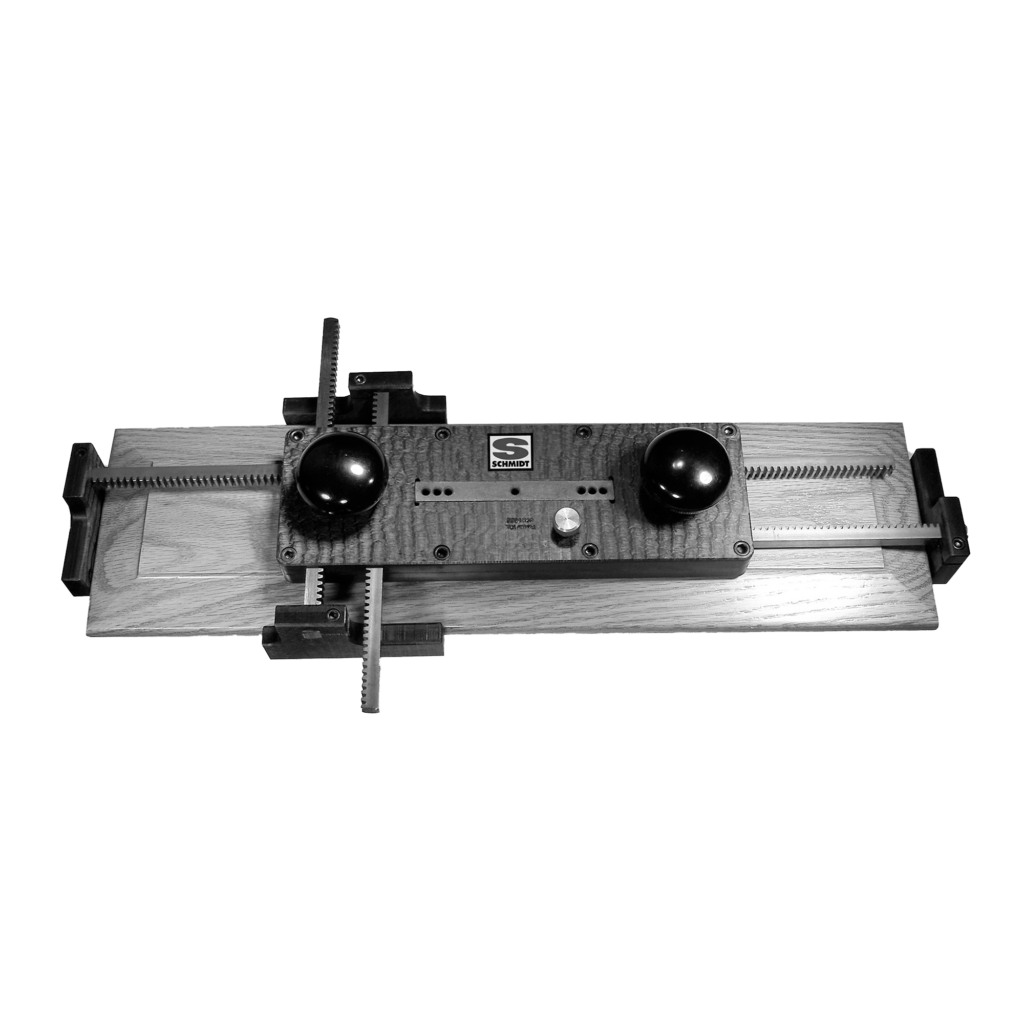

S&H Self-Centering Drawer Handle Mounting Jig

Description

The S&H Drawer Jig from Schmidt is a self-centering fixture for fast, accurate placement of drawer pulls and handles. Rather than measuring and marking each drawer front individually, the jig automatically centers itself on the workpiece, letting operators set both drill points simultaneously at the correct horizontal spacing. Consistent hardware placement matters in production cabinet work — a fraction off on a run of drawers is visible immediately when doors and drawers are hung side by side. The self-centering mechanism accommodates a range of drawer front widths without re-setup. Solid construction handles the repetitive use of a production shop environment. For woodworking shops and cabinet manufacturers who install hardware in volume, the S&H Drawer Jig reduces layout time to near zero and eliminates the rework that comes from misaligned pulls. Pair with the AC861 S&H Door Jig for a complete handle and pull installation system across both drawers and doors.
