XLW HP 1-1/4″ × 5/16″ Corrugated-Back Knife Bar — 25″

Description

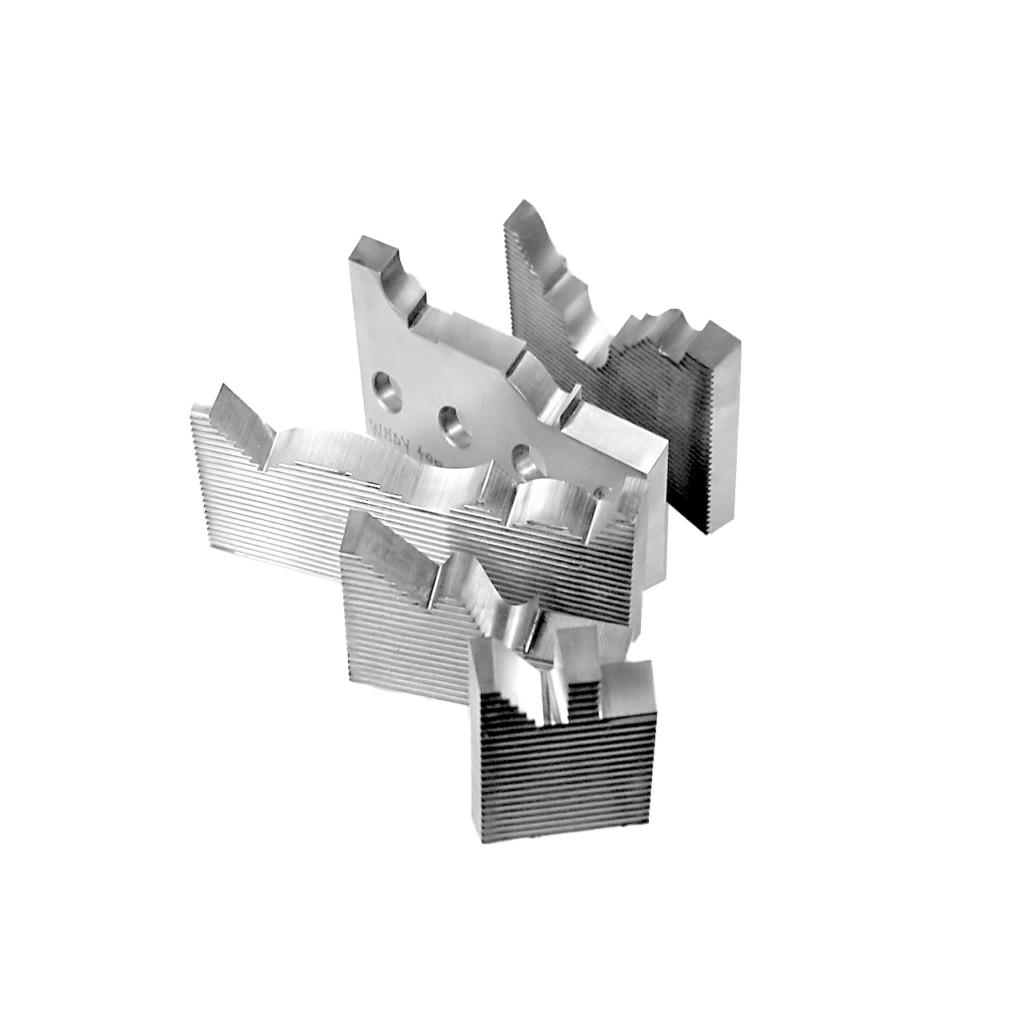

The CB201X6 is a 25-inch XLW high-performance HSS corrugated-back knife bar, 1-1/4 wide and 5/16 thick, for corrugated-back (CB) moulding and planing heads with 60° corrugation. The 60° corrugated back interlocks with matching head corrugations, providing positive mechanical knife retention that prevents radial shift during operation. Bar-length stock is cut to the required knife length for each profile and head configuration in-shop, then ground to the finished moulding profile on a surface grinder. The 5/16 thickness must match the head’s knife slot specification; the 1-1/4 width determines the maximum profile height. XLW HP is Schmidt’s extended-wear premium alloy — formulated for longer edge intervals than standard T1, M2, or M3 grades. Suited to high-volume production moulding where maximizing time between grinds reduces downtime and per-knife tooling cost. Confirm head slot accepts 5/16-thick knife stock at 1-1/4 knife height. 60° corrugated back; 25-inch bar length.
